Key Features
- WORLD FIRST & ONLY Telearm which is fully approved and compliant for Australian Tier 1 construction work sites.
- Twin downward & twin upward ropes for optimum safety. Each rope is rated at 5 times the working load.
- Full Hardox construction for optimum strength and durability.
- Access service panels.
- Easily mount and dismount from the excavator.
- Twin Axis camera system give 360 degree view of the bucket and loading area.
- Optional BOSS auto lockout system. This system prevents operators from extending the telearm to an angle outside the excavators safe working limits.

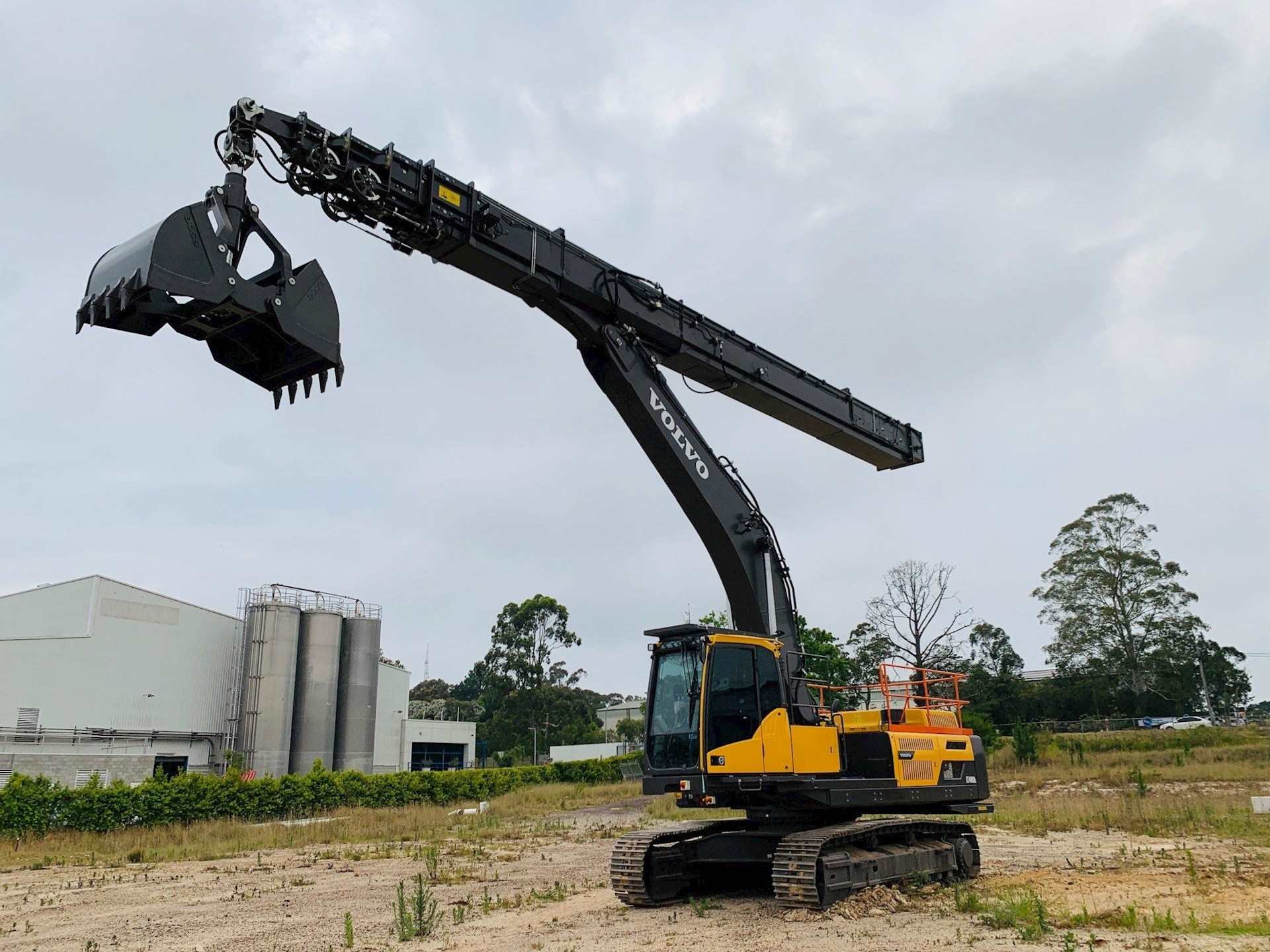

The BOSS EXTRACTOR 25m telescopic arm complete with 1.4cum clamshell bucket achieves a conservative production rate of 75.9m3 per hour AT 25m.
Telescopic Arm
3 stage Telescopic arm with a maximum reach of 25m at the bucket.
Clamshell Bucket
- 1.200mm wide
- 1.4 cum capacity
- Teeth: 5+4
- 240bar working pressure
- Bolt on scraper bars for sticky product extraction
Axis Camera System
- 360 degree view wireless twin camera system complete with 7″ colour monitor.
Paint
- Telearm painted in carrier matching or client company colours.
Counterweight Requirements
- Extra counterweight of 3ton is required.

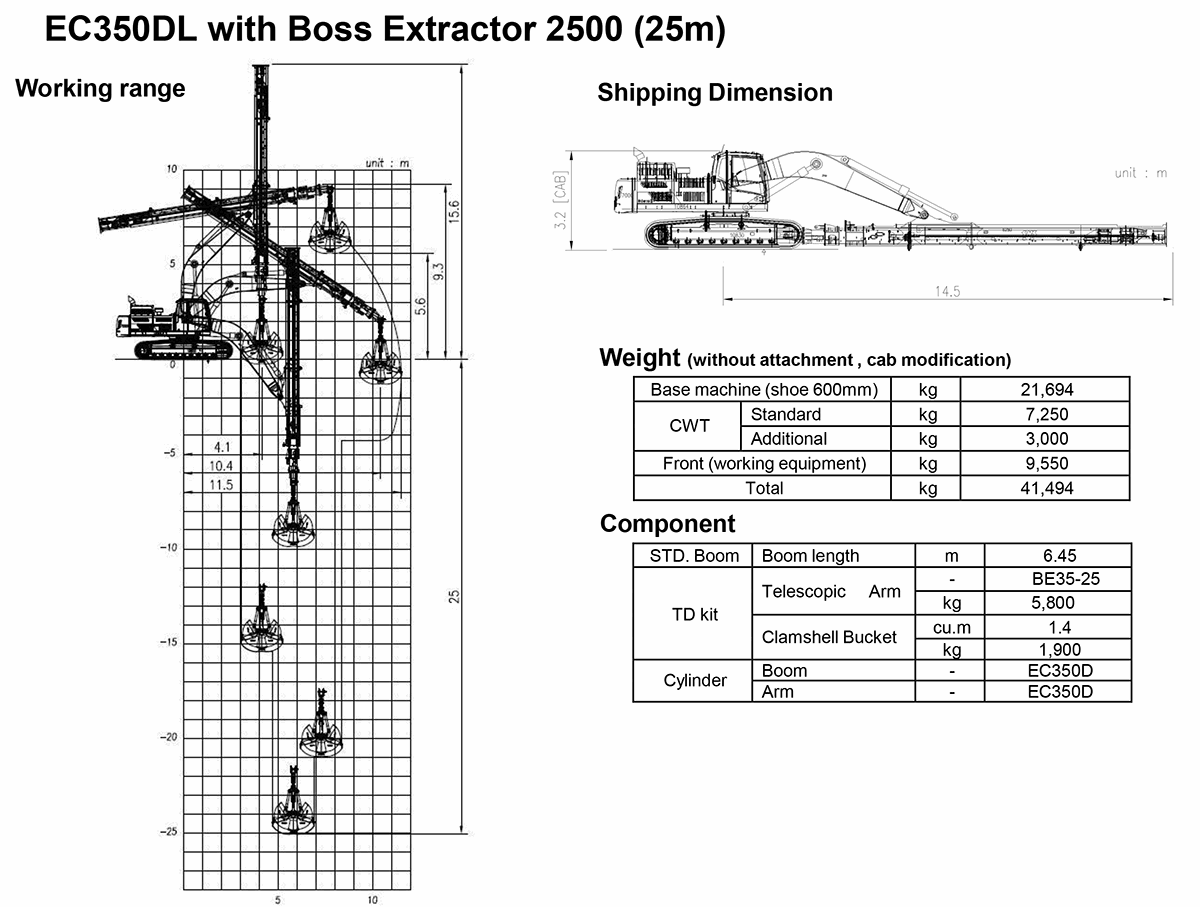

Specifications
